Fendt 800 & 900 Series High Level Headlight Replacement

Fendt 800 & 900 Series High Level Headlight Replacement

Regular price €279,00 EUR
Regular price Sale price €279,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

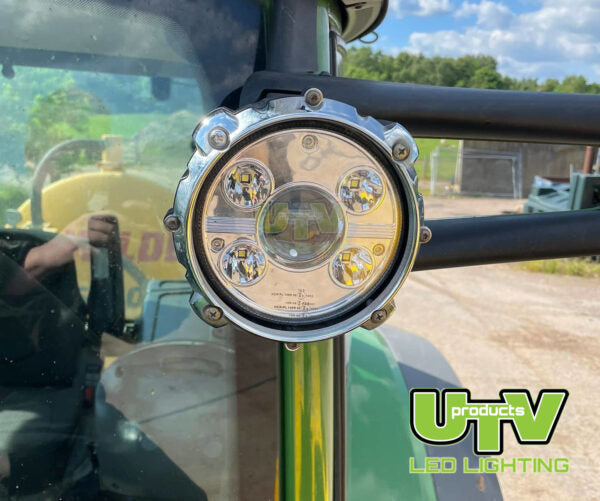

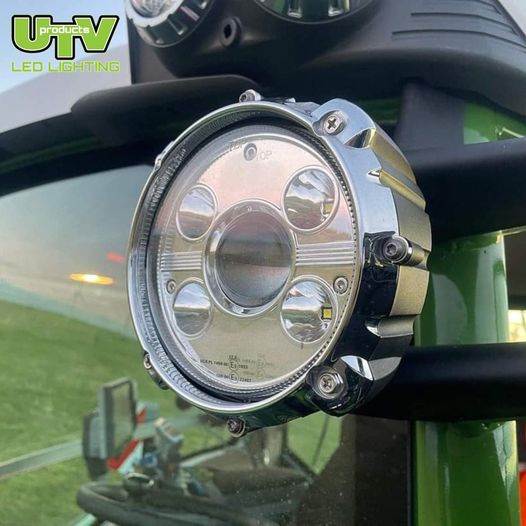

This UTV394K is a LED high level headlight kit designed for Fendt 800 & 900 series tractors. It contains our brilliant UTV336 and resistor kit. We know your time is precious so this kit is all done for you – no further modifications are required allowing ‘plug and play’ capabilities. Our kit allows the light to fit into the original mounting so nothing needs to be adapted – no messing, no modification, no problem!

Among one of our bestseller headlights, the UTV336 is an excellent headlight giving you 30W, 2250 lumen low beam 50W, 3750 lumen high beam (that’s actual lumens) designed for Fendt 800 & 900 series tractors. This high and low beam headlight gives you considerable illumination and greater distance than factory fitted halogen lights. The low beam offers excellent close to lighting so you can see people, obstacles and other machines with ease. It is also fully adjustable meaning you won’t dazzle oncoming traffic. As with all our products which we believe is unique to our lights, there is no radio interference meaning no irritating crackles when your radio, CB radio and even your GPS is on. Worried about how these lights would look on your machine? Don’t be – we pride ourselves on maintaining the OEM appearance of your machine so our lights won’t look out of place.

Need more information? Don’t hesitate to get in touch with one of our knowledgeable members of the team to discuss options or for general help about this kit. Remember LHD versions are available in this light as well as RHD.

Kit includes:

2 x UTV336 Head lights

1 x UTV703 Dual Resistor kit

Specification:

Low beam: 30W, 2250 lumen

High beam: 50W, 3750 lumen

EMC: CLSPR25 CLASS 4

Voltage:9-32V DC

3 Tab OEM fixing point

RHD approvals R112, R7

Operation Temperature: -40°~ +85°C

Colour Temperature: 6000k

Waterproof & Dustproof: IP69K

Die-cast aluminium housing

Durable polycarbonate lens

Fitted H4 connector

Lens diameter 132mm

Light diameter 140mm

Depth 79mm

H4 connector

Plug and play
